Steel Moulds for Hydraulic Biogas Digester and More
Alternative Energy Technologies, LLC
330 S Pacific HWY Suite A
Cottage Grove, OR., 97424
541-767-9014
Constructing concrete digester of the Chinese Hydraulic BioMethane Plant. The digester can be build underground or above ground. It can be constructed in aproximately one day without any training and has a 100% success rate. The steel mould is Reusable. HS CODE: 84804900
A Cylindrical steel mould inner mould
Item Model Capacity              (M3) Size Weight        (kg) Package           (cbm)  Unit Price
D(cm) H(cm) H1(cm)
1 TY-SM8-1 8 ¢270 100 50 360 2.00 call
2 TY‐SM10‐1 10 ¢300 100 60 430 2.20
3 TY‐SM20‐1 20 ¢320 100 50 800 3.00
4 TY‐SM50‐1 50 ¢472 150 98 1430 6.00
5 TY‐SM100‐1 100 ¢600 200 125 2570 8.00
6 TY‐SM200‐1 200 ¢800 250 165 4800 10.00

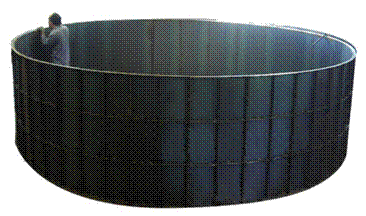

B Cylindrical steel mould outer mould
Item Model Capacity              (M3) Size Weight        (kg) Package           (cbm)  Unit Price
D(cm) H(cm)
1 TY-SM8-2 8 ¢290 120 220 1.20 call
2 TY‐SM10‐2 10 ¢320   120 120 260 1.32
3 TY‐SM20‐2 20 ¢380   120 120 480 1.80
4 TY‐SM50‐2 50 ¢512   180 180 860 3.60
5 TY‐SM100‐2 100 ¢640   240 240 1550 4.80
6 TY‐SM200‐2 200 ¢840   290 290 2900 6.00

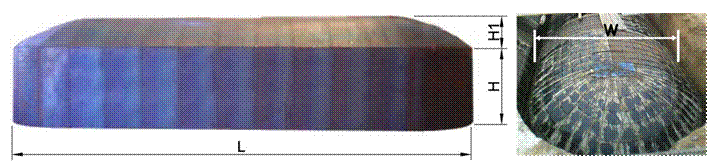

C Tunnel Steel mould
type inner mould
Item Model Capacity              (M3)
Size
Weight        (kg) Package           (cbm)  Unit Price
 L(cm)  W(cm)   H1(cm)  H2(cm)
1 TY-SMT50-1 50   593      346         150          85 1450 3.50 call
2 TY‐SMT100‐1 100  1136     346         150          85  2600 4.60
3 TY‐SMT200‐1 200  1472     472         198          98 4800 5.80
4 TY‐SMT300‐1 300  2158     472         200         100 7200 10.00
7
D Tunnel Steel mould
type outer mould
Item Model Capacity              (M3) Size Weight        (kg) Package           (cbm)  Unit Price
L(cm) W(cm) H(cm)
1 TY-SMT50-2 50 623 376 170 870 2.20 call
2 TY‐SMT100‐2 100 1156 366 170 1600 2.80
3 TY‐SMT200‐2 200 1512 512 260 2900 3.50
4 TY‐SMT300‐2 300 2198 512 260 4400 6.00
Red Mud soft floating digester
The digester tank can be constructed using concrete or brick. The Red Mud soft floating membrane is installed
on top to collect and store the biogas. The material of the membrane is red‐mud, soft reinforced membrane,
The size and shape can be customized. HS CODE: 39232900.00
Item Model Capacity              (M3) Size of digester tank (cm)  Weight        (kg) Package           (cbm)  Unit Price
Length Wide Depth
1 TY‐RMFD20 20 500 200 200 45 0.30 call
2 TY‐RMFD50 50 1000 250 200 80 0.50
3 TY‐RMFD100 100 1000 250 400 80 0.50
4 TY‐RMFD200 200 1000 500 400 130 0.80
5 TY‐RMFD400 400 2000 500 400 260 1.20

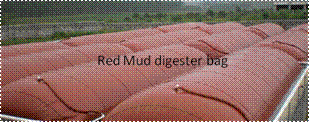

 Red Mud Digester Bag
The digester tank made od concrete and completed by the Red Mud soft membrane. The biogas will collect and be stored in the bag. The material of the membrane is red‐mud, soft reinforced membrane. The size and shape can be customized.
HS CODE: 39232900.00
Item Model Capacity              (M3) Size of digester bag (cm)
Weight        (kg)
Package           (cbm)  Unit Price
Length Wide Depth
1 TY-RMD4 4 200 200 100 28 0.15 call
2 TY-RMD6 6 250 200 120 31 0.20
3 TY-RMD8 8 250 200 160 40 0.25
4 TY-RMD10 10 250 200 200 45 0.30
5 TY-RMD20 20 500 200 200 86 0.35
6 TY-RMD50 50 1000 200 250
200
0.50
7 TY-RMD100 100 1000 400 250 320 1.00

Floating Pond Cover Digester
Floating Pond Cover Digesters  combine two parts into one - fermentation and gas storage. Using the impermeable material to fully enclose the anaerobic pond, it is simple and fast to build as well as inexpensive.The impermeable bag material  has high resistance to tension, anti-aging, and strong anti-corrosive characteristics provide a good antiseepage product. Residual heat from biogas generation and sun heat can be used by this bag. In addition to this an automatic mud remover in added at the bottom to remove mud. This product can overcome damage of equipment and high operation cost caused by the problems of water leakage, seepage, and gas leakage created by temperature changes in typical concrete biogas plants. It also resolves some pipe blockage problems. The size and shape can be customized, HS CODE: 39232900.00


PVC Biogas Storage Bags
Made of PVC soft membrane, it stores biogas at low pressure.  The size and shape can be customized. HS CODE: 39232900.00
Item Model Capacity              (M3) Size of biogas storage bag (cm)  Weight        (kg) Package           (cbm)  Unit Price
Length Wide Depth
1 TY-PVCBS-025 0.25 120 100 /
1.8
0.05 call
2 TY-PVCBS-05 0.5 150 120 / 2.8 0.07
3 TY-PVCBS-1 1 210 150 / 4.6 0.08
4 TY-PVCBS-2 2 250 230 / 7.8 0.10
5 TY-PVCBS-3 3 160 150 125 10 0.15
6 TY-PVCBS-5 5 210 160 150
15
0.20
7 TY-PVCBS-10 10 250 200 200 32 0.30
8 TY-PVCBS-20 20 500 200 200 55 0.40
9 TY-PVCBS-50 50 700 ¢300 / 110 0.50
10 TY-PVCBS-100 100 1400 ¢300 / 190 0.80
11 TY-PVCBS-200 200 1000 ¢500 / 350 1.00

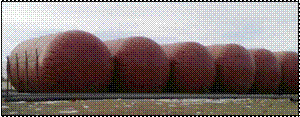

Red Mud-PVC Biogas Storage Bag
 Made of Red Mud-PVC soft membrane it stores biogas at low pressure.  The size and shape can be customized. HS CODE: 39232900.00
Item Model Capacity              (M3) Size of biogas storage bag (cm)
Weight        (kg)
Package           (cbm)  Unit Price
Length Wide Depth
1 TY-RMBS-05 0.5 150 120 / 5 0.05 call
2 TY-RMBS-1 1 210 150 / 9 0.07
3 TY-RMBS-2 2 250 230 / 15 0.08
4 TY-RMBS-3 3 160 150 125 20 0.10
5 TY-RMBS-5 5 210 160 150 28 0.15
6 TY-RMBS-8 8 200 200 200 32 0.20
7 TY-RMBS-10 10 250 200 200 42 0.30
8 TY-RMBS-20 20 500 200 200 82 0.50
9 TY-RMBS-50 50 700 ¢300 / 135 0.70
10 TY-RMBS-100 100 1400 ¢300 / 250 1.00
11 TY-RMBS-200 200 1000 ¢500 / 380 2.00
12 TY-RMBS-500 500 1750 ¢600 / 750 4.00
13 TY-RMBS-1000 1000 2600 ¢700 / 1250 7.00
14 TY-RMBS-2000 2000 2550 ¢1000 / 1900 12.00


Double Membrane Gas Storage
The material membrane is PVDF(polyfluortetraethylene) with anti-corrosion, anti-aging, anti-microbial, anti-UV and other functions. The fire-retardant grade is B1. Tensile strength is more than 4000N/5cm. The life time is more than 25 years. Gas holder is 3/4 sphere, it is fixed in a concrete base by rail and the main body is made of specially processed polyester. The holder consists of an outer membrane, inner membrane, bottom membrane and accessory equipment. An airtight space, whose volume is variable, is formed between the inner membrane and bottom membrane. The outer membrane forms the sphere shape of the gas holder. It uses an outer membrane intake blower to provide constant pressure when the volume decreases. The outer membrane provides the lining‘s design for gas pressure through a blower inlet to make the air between inner and outer membranee when the gas volume increases. The inner membrane normally stretches to release the excess air from the outer membrane through a relief valve. The gas pressure of the inner membrane is always needed to be at a constant in this design. HS CODE: 39232900.00


Desulfurizer tower
The main function of the Desulfurizer is to remove H2S and impurities in the biogas. The contents is mainly Ferric Oxide (Fe2O3). Install it in the shade.  The contanier is made of anti corrosive steel.
Item Model Capacity              (L) Flow rate(m3/h) Change (kg) Pressure (Kpa) Weight        (kg) Dimension          (cm)  Unit Price
1 TY-DS100L 100 10~15 85 2~40KPa 120 ¢40*120 call
2 TY-DS200L 200 15~25 170 2~40KPa 220 ¢50*140
3 TY-DS275L 275 25~40 234 2~40KPa 300 ¢50*180
4 TY-DS300L 300 30~50 255 2~40KPa 330 ¢50*190
5 TY-DS350 350 35~65 298 2~40KPa 390 ¢50*220
6 TY-DS430L 430 45~70 366 2~40KPa 450 ¢63*180
7 TY-DS470L 470 50~80 400 2~40KPa 500 ¢63*190
8 TY-DS640L 640 65~90 544 2~40KPa 660 ¢63*230
9 TY-DS800L 800 80~110 680 2~40KPa 830 ¢80*200
10 TY-DS900L 900 110~150 765 2~40KPa 940 ¢80*220
11 TY-DS1000L 1000 120~160 850 2~40KPa 1050 ¢80*230
12 TY-DS1100L 1100 130~180 935 2~40KPa 1200 ¢80*260
13 TY-DS1730L 1730 180~220 1471 2~40KPa 1800 ¢100*260
14 TY-DS2000L 2000 200~250 1700 2~40KPa 2100 ¢100*260

Dehydrator Tower
Item Model Capacity              (L) Flow rate(m3/h) Pressure (Kpa) Weight        (kg) Dimension          (cm)  Unit Price
1 TY-DH100L 100 10~30 <40KPa 40 ¢40*120 call
2 TY-DH200L 200 40~60 <40KPa 60 ¢50*140
3 TY-DH300L 300 60~100 <40KPa 80 ¢50*190
4 TY-DH640L 640 150~300 <40KPa 120 ¢63*230
5 TY-DH900L 900 300~600 <40KPa 150 ¢80*220



Household size Desulfurizer and Dehydrator
Item Model Capacity              (L) Flow rate(m3/d) Size (cm) Weight        (kg) Dimension          (cm)  Unit Price
D H
1 TY-DS1L 1 3 200 100
1.5
24*14*6 call
2 TY‐DS/DH25L 25 20 200 120 20 50*20*60
3 TY‐DH03L 0.6 3 200 120 0.2 10*8*11


Biogas Stoves
Item Model TY-JZZ1 TY-JZZS1 TY-JZZT1 TY-JZZ2
TY-JZZS2
TY-JZZT3 TY-ZZL
1 Suitable gas Biogas/NG Biogas/NG Biogas/NG Biogas/NG Biogas/NG Biogas/NG Biogas/NG
2 Pressure(kpa) 1.6~12 1.6~12 1.6~12 1.6~12 1.6~12 1.6~12 1.6~12
3 Heat power 3.00kw 3.00kw 3.00kw 3.00kw*2 3.00kw*2 3.00kw*2 12.00kw
4 Consumption  0.50m3/h 0.50m3/h 0.50m3/h 0.50m3/h*2 0.50m3/h*2 0.50m3/h*2 2.00m3/h
5 Ignition type Pulse Pulse Pulse Pulse Pulse Pulse Pulse
6 Materail Stainless steel panel Stainless steel panel Toughened glass
panel		 Stainless steel panel Stainless steel panel Toughened glass
panel 		 Cast iron
7 Dimension(cm)  41*31*13 46*34*18 46*34*18 73*42*13 76*46*19 78*46*20 65*46*13
8 Weight(kg) 3.5 5.0 5.0 6.0 8.5 12.5 8.0
9 Unit price call


Biogas Rice Cookers
Item Model TY‐BRC2.5L TY‐BRC6L
TY‐BRC10L
TY‐BRC20L
1 Suitable gas Biogas/NG Biogas/NG Biogas/NG Biogas/NG
2 Capacity (L) 2.5 6 10 20
3 Pressure(kpa) 1.6~6.0 1.6~6.0 1.6~6.0 1.6~6.0
4 Consumption  0.30m3/h 0.80m3/h 1.5m3/h 2.00m3
5 Ignition type Pulse Pulse Pulse Pulse
6 Materail Stainless steel panel High strength double-faced enamelled steel
7 Dimension(cm)  33*33*26 40*40*35 50*50*40 60*60*45
8 Weight(kg) 3.5 15 19 25
9 Unit price call




Biogas Water Heater
Item Model Suitable gas Ignition Surface treatment Flow  (gal/min) Water Pressure Gas entrance pressure Unit price
1 TY‐WH7L Biogas/NG Auto Painting 1.9 2.9~145psi .23psi~.87psi call


Biogas Pump (Household Digester)
Item Model TY‐GP‐20W TY‐GP‐40W TY‐GP‐40W‐1 TY‐GP‐100W TY‐GP‐100W‐1 TY‐GSP‐15W‐1
1 Power(W) 20 40 40 100 100 15
2 Power supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/24V/50Hz
3 Pipe size ¢10mm ¢10mm ¢10mm ¢10mm ¢10mm ¢10mm
4 Max. pressure 20KPa 32KPa 35KPa 50KPa 50KPa 20KPa
5 Max. flow 40L/min 50L/min 60L/min 100L/min 100L/min 25L/min
6 Operation 24hours Less 3 hours 24hours Less 3 hours 24hours 24hours
7 Weight(kg) 2.0 3.0 3.5 5.0 6.0 3.5
8 Dimension(cm)  20*15*10 30*15*15 30*15*15 35*20*18 35*20*18 30*20*12
10 Unit price call
X(VWXW2()5ODFVF5VU9((TW
交流增压泵-


交直流沼气增压泵2 拷贝


Biogas Pump (larger)
Anti exposure motor, power usage: 0.55~180kw, flow rate: 10~8000m3/hour, Please confirm the model before ordering
Item Model TY-GP/0.55 TY-GP/1.10 TY-GP/1.50 TY-GP/2.20 TY-GP/4.00 TY-GP/5.50
1 Power(kW) 0.55 1.10 1.50 2.20 4.00 5.50
2 Power supply 380V/50Hz
3 Pipe size ¢30mm ¢50mm ¢65mm ¢80mm ¢100mm ¢125mm
4 Max. pressure 60KPa
5 Max. flow 40L/min 50L/min 60L/min 100L/min 100L/min 25L/min
6 Operation 24Hours
7 Weight(kg) 92 112 132 156 186 244
8 Dimension(cm)  65*32*45 70*37*50 73*42*55 82*45*58 90*48*64 90*57*70
10 Unit price call


Flow Meters
Item Model G1.6 G2.5 G4 G6 G10 G16 G25
1 Qmax(m3/h) 2.5 4 6 10 16 25 40
2 Qmin(m3/h) 0.016 0.025 0.04 0.06 0.01 0.16 0.25
3 Max pressure 10KPa 10KPa 10KPa 10KPa 20KPa 20KPa 20KPa
4 Temperature -10~40℃
5 Materail Aluminum shell
6 Dimension(cm)  17*13*23 17*13*23 21*18*23 25*20*26 29*22*21 34*25*38 65*46*13
7 Weight(kg) 2.0 2.0 2.5 3.1 4.3 7.6 12.0
8 Unit price call



Biogas Pipe and Fittings
Item Name Model Specification Photo Unit price
1 Biogas Hard pipe with connector TY-HP-C Use for outdoor, Suitable for one set of household biogas system, 50ft of Φ16mm hard pipe, valve, connector and holding Hard pipe and fitting 拷贝

call
2 Biogas Hard pipe connector   Corrosion resistant sealing rubber
Suitable for 16mm hose


3 PVC Biogas valve TY-PV16 Corrosion resistant sealing rubber
Suitable for 16mm hose


4 Biogas soft pipe with connector TY-SP-C Use for outdoor, Suitable for one set of household biogas system, 50ft of Φ17mm hard pipe, valve, connector and holding Soft pipe and pipe fitting


  Biogas fitting TY-BF 100ft Φ8mm PVC soft pipe, 1pc pressure gauge 16KPa, 1pc two stage desulpharize ,5 pcs valve, Suitable for one set of household biogas system
Soft pipe and pipe fitting


5 PVC Biogas valve TY-PV8 Corrosion resistant sealing rubber
Suitable for Ø8mm hose


6 Brass Biogas valve TY-BV1/2 Diameter 1/2"
Material Brass
Max pressure 232psi
Fields of applications  Gas/Water
Weight 150g


7 Brass Biogas valve TY-BV3/4 Diameter 3/4"
Material Brass
Max pressure 232psi
Fields of applications  Gas/Water
Weight 220g


8 Pressure gauge 16kpa TY-PG-16 The pressure gauge uses KPA the international standard pressure unit as pressure unit. 1KPA = 10.2CM water column


9 Biogas lamp TY-LAMP The light is similar to a 60W  incandescent lamp,
Gas consumption: 0.07m³/h


10 Biogas room heater TY-RT Gas consumption rate: 0.3m³/h
A heater could keep warmth for a room about 65 ~ 97 sqft.
Usage for hog house and pheasantry		 QQ图片20150624110755.png


11 Pressure safety Valve TY-PSV-8 Automatic pressure relief QQ图片20160504153331 拷贝


Small Biogas Generators
Item Model CC1500MG CC5000MG
A Geneartor
1 Suitable gas Biogas/Natural gas/LPG
2 Frequency(Hz) 50/60
3 Rated Power(kw) 1.20 3.00
4 Max. Power(kw) 1.30 3.50
5 DC Output 12V/8.3A
6 Type of Generator  Single-phase Brush Motor
B Engine
1 Engine Type CC168-MG CC188-MG
2 Model of engine Single Bore,4 stroke, forced air cooled
3 Bore * Stroke 68 x 54mm 88 x 64mm
4 Displacement 163cc 389cc
5 Startup hand/electric electric
6 Ignition System T.C.I.
7 Engine oil capacity(L) 0.55 0.9
8 Gas consumption(m3/h) 1.46 3.5
9 Continue Working Time  6 Hours
10 Dimensions (in) 24.4*18.9*18.9in 28*28*23.6in
11 Weight 56kgs 93kgs
12 Unit Price call
13 Photo

Biogas generator 1.2-3.5KW.jpg

14 Biogas Gas requirements:
Biogas should be no less more than 60% Methane (CH4)
Gas pressure: .29psi ~ .87psi
Biogas should be processed by desulfuring and dehydration before entering into the generator sets. (Otherwise, it will damage the engine cylinder, spark plug and other parts.) The warranty will not cover damaged cause by ignoring this warning and not desulferizing and dhydrating the gas before running the generator with it.
